Gigabyte BRIX GB-BTIP-N250 Intel N250 Barebone Mini PC

Important: This is a barebone mini PC. RAM, SSD and operating system are not included.

Gigabyte BRIX GB-BTIP-N250 Intel N250 Barebone Mini PC

Intel N250 • No D5 RAM • No SSD • 1xHDMI+2xType-C • 1xGB LAN • Wifi5 • No OS • 3YR Warr.

Key features

• Compact Gigabyte BRIX mini PC
• 3-year manufacturer warranty
• VESA mounting support

Technical specifications

Product Name: GB-BTIP-N250

Dimension: 113 mm x 116.52 mm x 56.22 mm

Motherboard Size: 108 mm x 103 mm

CPU: Intel® Processor N250 • 4C, up to 3.8 GHz, 6W

Memory: No Memory included in barebone • Slots available: 1 x SO-DIMM DDR5 slot, support up to 4800MHzMax. 16GB

LAN: GbE LAN (Realtek® RTL8111H)

Wi-Fi Card: AW-CB515NF • Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0

Graphics: Intel® Graphics 32EUs • 1 x HDMI v2.0, 4096x2160@60Hz • 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz • 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz

Audio: Realtek® ALC897

Storage: 1 x 2.5" slot for SATA HDD/SSD

Expansion Slots: No SSD included in barebone • Slots available: 1 x M.2 M Key 2280 slot (PCIe Gen 3x2) • 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)

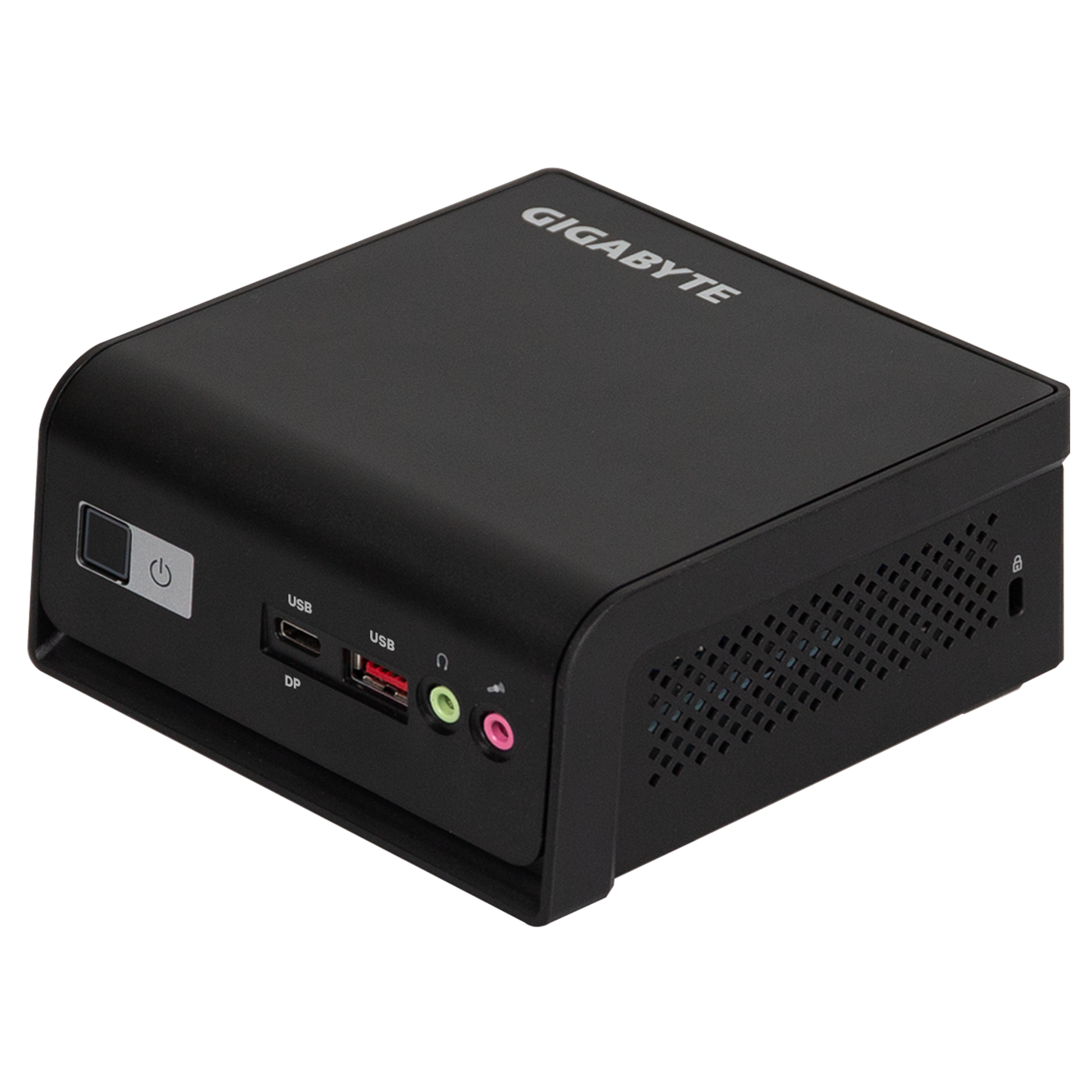

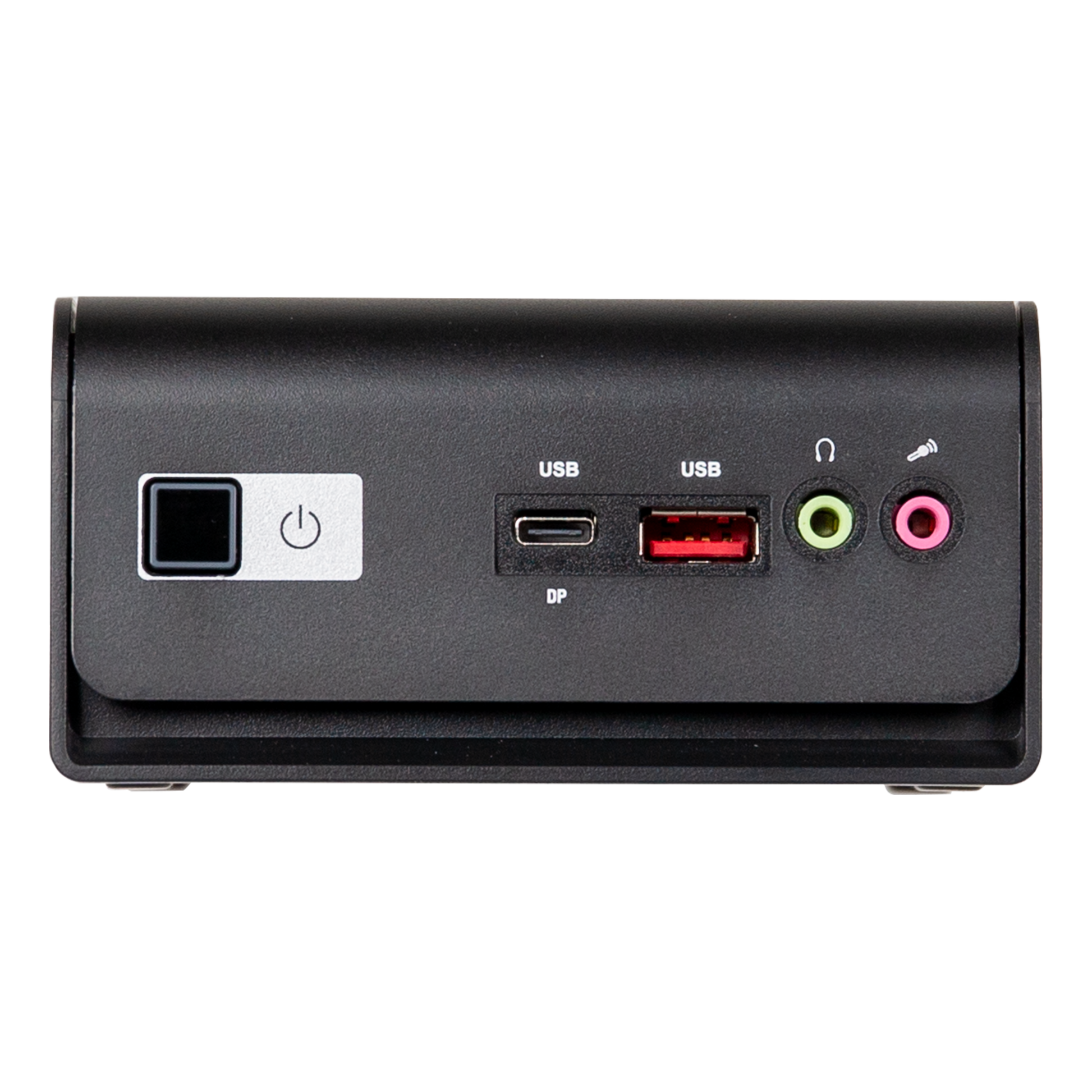

Front I/O: 1 x Power button • 1 x USB 3.2 Gen2 Type-A • 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB) • 1 x Headphone • 1 x Microphone

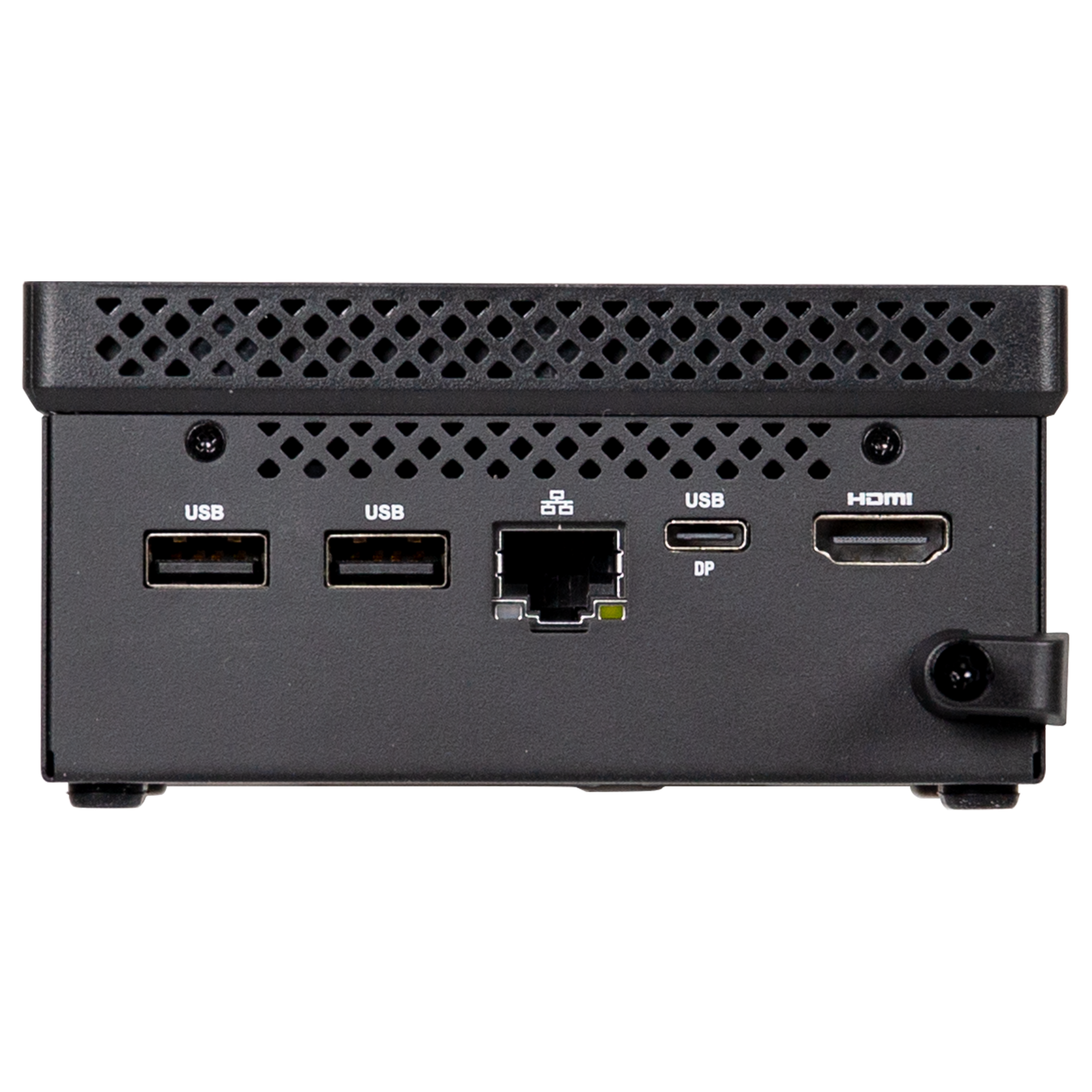

Rear I/O: 1 x HDMI • 1 x RJ • 452 x USB 3.2 Gen2 Type-A • 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB) • 1 x Wire Clamp Screw Hole

Left I/O: 1 x DC-In

Right I/O: 1 x Kensington lock slot

Power Supply: Input: AC 100-240V • Output: DC 19V / 3.42A, 65W

VESA Mount: VESA support • Supports: 75 x 75 and 100 x 100 mm

Supported OS: No OS included in barebone • Supports: Windows 11 64bits • Fedora 40 • Ubuntu 24.04.2 LTS • Ubuntu 24.04.3 LTS • Ubuntu 24.10 • Ubuntu 25.04

Environment: System Environment Operating Temperature: 0°C to +35°C • System Storage Temperature: -20°C to +60°C

Specifications supplied by COM1/Gigabyte. Please verify RAM, SSD, operating-system and accessory compatibility before purchase.
